| الاسم التجاري: | HongCe |
| رقم الطراز: | HDD8303 |
| الـ MOQ: | 1 مجموعة |
| السعر: | Negotiatable |
| شروط الدفع: | تي / تي، خطاب الاعتماد |
| القدرة على التوريد: | 10 مجموعة شهريا |

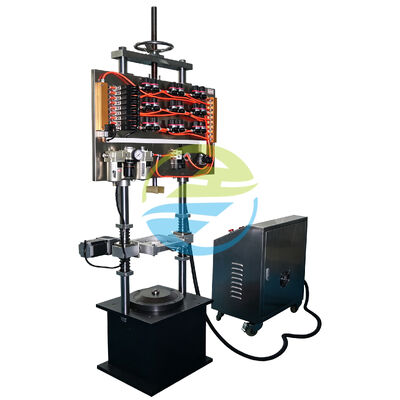

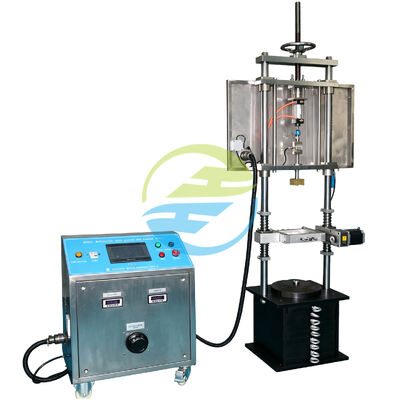

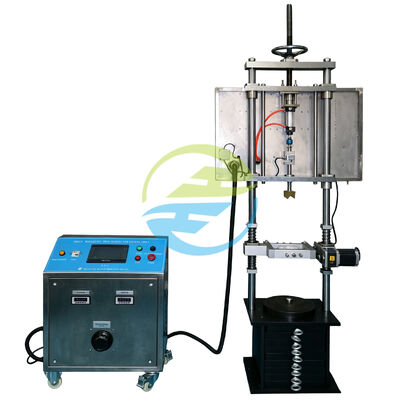

The Electric Hammer Durability Impact Testing Machine is designed for durability and performance evaluation of handheld motor-operated electric tools with power ratings up to 2.5kW. Developed in accordance with IEC 60745-2-1 and IEC 60745-2-6 requirements, the system simulates real operating conditions to assess the mechanical reliability and continuous operating performance of electric hammers, rotary hammers, impact drills, and similar power tools.
IEC 60745-2-1
Particular requirements for drills and impact drills.
Relevant Test Requirement:
IEC 60745-2-6
Particular requirements for hammers.
Relevant Test Requirement:
The equipment is designed and manufactured in strict accordance with the above IEC requirements.
| No. | Item | Specifications |
|---|---|---|
| 1 | Power supply | 220V/60Hz |
| 2 | Air source | 5~8 bar |
| 3 | Electrical control | MITSUBISHI PLC, 7 Inch Touch screen |
| 4 | Load voltage | 0-250V adjustable, current display |
| 5 | No-load rotation angle | 0°,90°,180°, can manual control clockwise or counter clockwise |
| 6 | No-load rotation rate | 0-360°/s, preset |
| 7 | Power on time | 0-999.9s, preset |
| 8 | Power off time | 0-999.9s, preset |
| 9 | Test time | 0-9999h, preset |
| 10 | Total test time | 0-9999h, preset |
| 11 | Interval time | 0-9999min, preset |
| 12 | Load pressure | 100,125,150,175,200,250,300,350,400N preset |
| 13 | Impact head | 0.7,1.4,2.3,3.4kg (include the connect handle), use according to table 101 |
| 14 | Steel ball | Φ38mm |
| 15 | Steel plate | 100,140,180,220mm, use according to table 101 |
| 16 | Rubber plate | A set of 4, Matching with steel plate and steel base |
| 17 | Steel base | base weight 90kg, equipped with 9 pcs 30kg weights |
| 18 | Dimension |
Control cabinet 60*40*75cm, about 100kg; Test rack 40*40*200cm, about 390kg |
Q1. Which standards does this tester comply with?
IEC 60745-2-1 and IEC 60745-2-6.
Q2. What products can be tested?
Electric hammers, impact drills, rotary hammers, and handheld power tools under 2.5kW.
Q3. Can the voltage be adjusted?
Yes. The load voltage is adjustable from 0-250V.
Q4. Is angle positioning automatic?
Yes. The system supports automatic angle positioning.
Q5. Is customization available?
Yes. HongCe provides customized IEC testing solutions.
HongCe is a professional manufacturer of IEC Test Equipment with extensive experience in designing and manufacturing testing solutions for household appliances, power tools, batteries, plugs & sockets, IP testing systems, and environmental testing equipment.
