| الاسم التجاري: | HongCe |
| رقم الطراز: | GW-1 |
| الـ MOQ: | 1 set |
| السعر: | Negotiatable |
| شروط الدفع: | T/T |
| القدرة على التوريد: | 10 set /month |

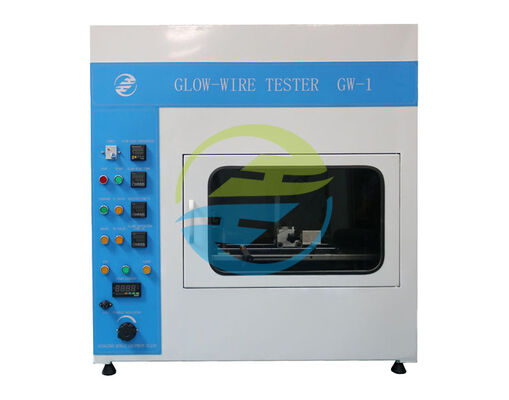

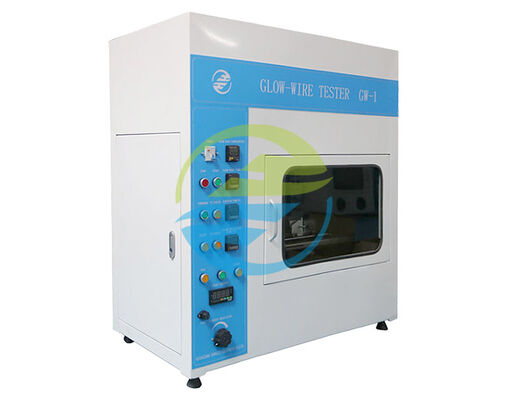

| Model | GW-1 |
|---|---|
| Glowing filament | Ф4mm ± 0.04mm Ni/Cr(77/20) special standard ring shape, horizontal standing |
| Thermocouple | 1mm import K thermocouple, temperature resistance of armour is 1100℃ (better than standard of 1050℃) |
| Ohmic heating temperature | 500℃～960℃ (digital display can be preset), temperature fluctuation <3℃ |
| Specimen pressure | 0.95N±0.1N (adjustable) |
| Maximum depth of heating | 7mm ± 0.5mm |
| Specimen movement speed | 10mm/s～25mm/s |
| Testing time | 30s±0.1s (1s～999.9s digital display preset) |
| Thickness of ignite bedding board | 10mm, white pine board cover 12g/m²～30g/m² standard silk paper |
| Volume of test site | ≥0.5m³ black background, background illuminance ≤20Lx |
| Dimensions & weight | W: 1105mm × D: 580mm × H: 1300mm Gas vent:100mm, 140kg |
| Power | 1kVA 220V±10%/50Hz (can be customized) |
