| الاسم التجاري: | HongCe |
| رقم الطراز: | HC9915 |
| الـ MOQ: | 1 مجموعة |
| السعر: | قابل للتفاوض |
| شروط الدفع: | تي/تي |
| القدرة على التوريد: | 10 مجموعات في الشهر |
Plug Socket Tester for 30A 300V Making & Breaking Capacity and Normal Operation Load Testing Equipment
Product Description
The HC9915 Plug Socket Tester is a professionally engineered single-station power load cabinet designed for making and breaking capacity testing, normal operation testing, and load endurance verification of plugs, sockets, couplers, and similar electrical accessories. Manufactured directly by HongCe, this equipment helps laboratories, quality inspection departments, and manufacturers improve product reliability, safety consistency, and international compliance efficiency.
Built for long-term industrial operation, the HC9915 combines stable load control, accurate current and voltage adjustment, and user-friendly operation in one compact testing solution. It is widely used in plug socket testing laboratories, appliance manufacturers, certification organizations, and production quality control environments.
International Reference Standard
Why Choose HongCe Plug Socket Tester?
In electrical safety testing, unstable load output or inaccurate switching cycles can directly affect test reliability. The HC9915 is designed to deliver stable and repeatable performance under demanding testing conditions.
Technical Parameters
| No | Item | Parameter |
|---|---|---|
| 1 | Power Supply | single-phase 220V, 50Hz. |
| 2 | Stations | single station(Customizable) |
| 3 | Digital voltage meter | Range 0 ~ 300V accuracy ± 05% ± 2d |
| 4 | Digital ampere meter | Range 0 ~ 30A accuracy ± 05% ± 2d |
| 5 | Digital power meter | Range 0～10KW, accuracy±05% |
| 6 | Digital power factor meter | 0.3~0.98, accuracy: ±0.5% |
| 7 | Load method | Resistive, Inductive and Capacitive load three in one, Convertible |
| 8 | Capacity load | 70uf, 140uf, 7.3uf can be chosen |
| 9 | Load output | Each power, Interval power can be chosen |
| 10 | Count/Preset | 0～999999 times, can be preset Plug Socket Tester |
| 11 | Load capacity | 10KVA |
| 12 | Max. of the output current | 30A,when it exceeds 32A, it stopped automatically |
| 13 | Max. of the output voltage | 300V, when it exceeds 305V, it stopped automatically |
| 14 | Working environment | 80~106kpa, 5~40℃, (20~90)%RH |
| 15 | Using place | No violent shaking, without electromagnetic interference and dust, no explosive or corrosive gas. |
| 16 | Dimensions and weight | L*W*H= 760*700*1700mm, 276kg |
Product Features
Core Technologies
FAQ
1. What standards does the HC9915 comply with?
The equipment is mainly designed according to IEC 60884-1 related clauses for making and breaking capacity and normal operation testing.
2. What products can be tested?
It can test plugs, socket-outlets, extension sockets, appliance couplers, and similar electrical accessories.
3. Is the current adjustable?
Yes. The testing current can be adjusted up to 30A according to testing requirements.
4. Does the equipment support continuous testing?
Yes. The HC9915 is designed for continuous laboratory testing applications.
5. Can HongCe provide technical support?
Yes. HongCe provides professional pre-sales guidance, operation assistance, and after-sales technical support.

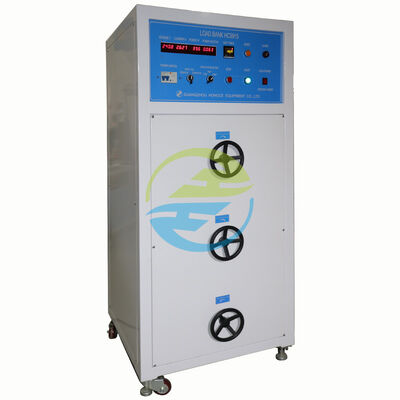

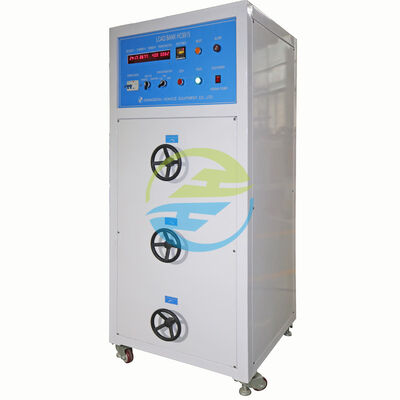

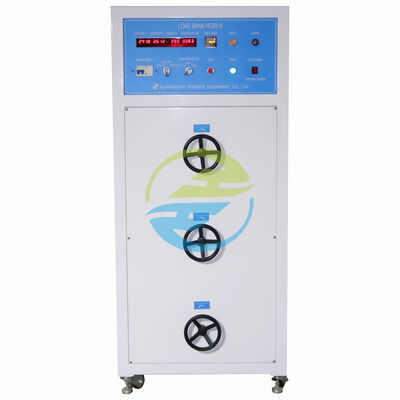

Picture for reference:
