| الاسم التجاري: | HongCe |
| رقم الطراز: | HC9914H |
| الـ MOQ: | 1 مجموعة |
| السعر: | قابل للتفاوض |
| شروط الدفع: | تي / تي، خطاب الاعتماد |
| القدرة على التوريد: | 10 مجموعة شهريا |

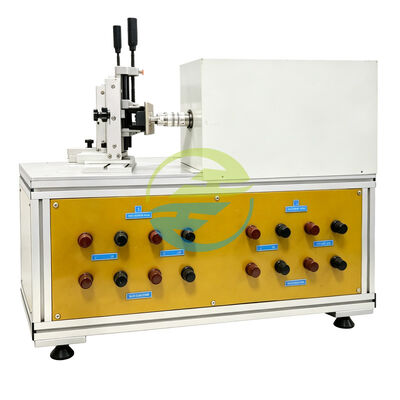

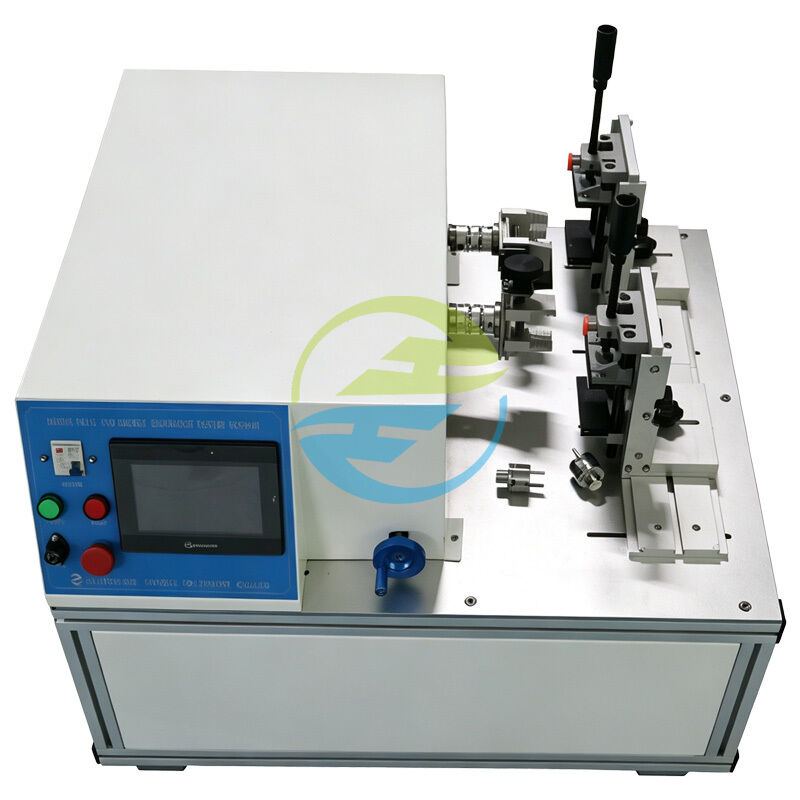

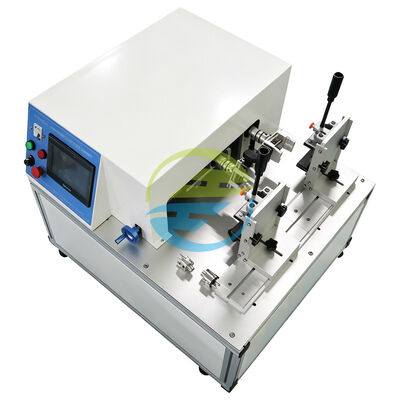

The HongCe Rotary Plug and Socket Durability Tester is a professional plug and socket tester designed to evaluate the breaking capacity, switching performance, and operational durability of rotary plugs, rotary sockets, switches, and electrical connectors used in household and similar fixed electrical installations.
Developed according to NF C 61-314:2017, this system accurately simulates real-world operating conditions, assessing whether electrical accessories will exhibit excessive wear, contact sticking, abnormal closure, or operational failures under long-term mechanical and electrical stress.
Electrical components undergo thousands of operations during their lifespan. Even minor design or material defects can lead to the following safety hazards:
The HC9914H plug and socket tester helps manufacturers identify these problems before products hit the market.
NF C 61-314:2017
Prises de courant pour usages domestiques et analogues
Relevant test requirements include:
| Standard | Clause | Test Item |
|---|---|---|
| NF C 61-314 | Clause 20 | Breaking Capacity Test |
| NF C 61-314 | Clause 21 | Normal Operation Test |
| NF C 61-314 | Related Endurance Requirements | Mechanical Durability Verification |
The tester is specifically designed and manufactured according to NF C 61-314 requirements for rotary plug and socket endurance evaluation.
| Model | HC9914H |
| Control and operation | PLC intelligent electrical control, 7 inch color touch screen operation |
| Drive | Servo motor drive, torque by servo motor control |
| Working station | 2 working stations, controlled independently |
| Sample range | Rotary plug, rotary socket |
| Test times | 0-999999 times, can be preset |
| Conduction time | 0-99.9s, can be preset |
| Distance between workstations | 48-300mm, can be adjust |
| Rotation angle | 0-N*360°, can be preset |
| Test speed | rotate 0-90°/s, can be preset |
| Sample fixture | XYZ Three axis fixture,can clamp plug and socket |
| Test plug and socket | Provided by customer |
| Load interface | 2 pieces |
| Size and weight | WDH=1090*800*700mm, about 147kg |
It is designed according to NF C 61-314:2017 endurance testing requirements.
Rotary plugs, rotary socket outlets, switches, and couplers.
Two independent testing stations.
Up to 999,999 programmable cycles.
Yes. Rotation angle can be programmed from 0 to N × 360°.
HongCe is a professional manufacturer specializing in IEC testing equipment, plug and socket testing systems, appliance safety testing equipment, IP waterproof testing equipment, environmental chambers, and laboratory testing solutions.
